Similar to Project 3, we need to find the best warp between two images.
The goal is to find $$\mathbf{H} = \begin{bmatrix}a & b & c \\ d & e & f \\ g & h & 1\end{bmatrix}$$ such that $$\mathbf{H} = \mathrm{arg} \min_\mathbf{H} \sum_{(\mathbf{x}, \mathbf{x'}) \in \mathcal{D}} \Vert \mathbf{Hx} - \mathbf{x'}\Vert_2^2$$ where $\mathbf{x} = \begin{bmatrix}x & y & 1\end{bmatrix}^T$ and $\mathbf{x'} = \begin{bmatrix}wx' & wy' & w\end{bmatrix}^T$. Here, $\begin{bmatrix} x & y \end{bmatrix}$ and $\begin{bmatrix} x' & y' \end{bmatrix}$ are the coordinates of the feature points in the source and destination images. $w$ is the scaling factor. $\mathcal{D}$ denotes the set of pairs of feature points in the two images.
We can rewrite this into a least squares problem on the parameters in $\mathbf{H}$. For each pair of feature point $\mathbf{x}_i$ and $\mathbf{x}_i'$, $$\underbrace{\begin{bmatrix} x_i & y_i & 1 & 0 & 0 & 0 & -x_i x_i' & -y_i x_i' \\ 0 & 0 & 0 & x_i & y_i & 1 & -x_i y_i' & -y_i y_i'\end{bmatrix}}_{P_i} \begin{bmatrix}a \\ b \\ c \\ d \\ e \\ f \\ g \\ h\end{bmatrix} = \underbrace{\begin{bmatrix}x_i' \\ y_i'\end{bmatrix}}_{v_i}$$
Stack $P_i$'s and $v_i$'s vertically, and we get a classical least squares problem, whose solution is given by $(P^T P)^{-1} P^T v$.
Much like Project 3, we need to manually label the key features of the images before we can find the homography. Note that the images are labeled pairwise, so the features selected in each pair can be different, even though they are taken from the same scene.
This is a laborious process, especially if the image chain is long. As an example, below are the manually selected feature pairs of the Meteor Crater photos, with feature points marked as red dots.
_crater_cropped%20(2)_manually_annotated.png)
_crater_cropped%20(3)_manually_annotated.png)
One straightforward way to test the algorithm is image rectification.
Below is an image of a checkerboard and the location of the vertices of the middle 6x6 squares (annotated with green points).
We want to warp the image such that the vertices form a perfect square. The desired location of the annotated points in the warped image are marked in red points.
The estimated region after the warp is highlighted with its vertices marked in blue points.
And here is the result of actually warping the entire image.
Below is another example.
With the feature points from manual annotation, we can recover the homography between two images and recursively blend them into a growing mosaic.
Note that the homography can be accumulated, and therefore warping from image $A \rightarrow C$ can be achieved by the composition of $A \rightarrow B$ then $B \rightarrow C$. Utilizing this fact, we first label each pair of adjacent images and get the estimated homography matrix. Then, we warp all images towards the center image.

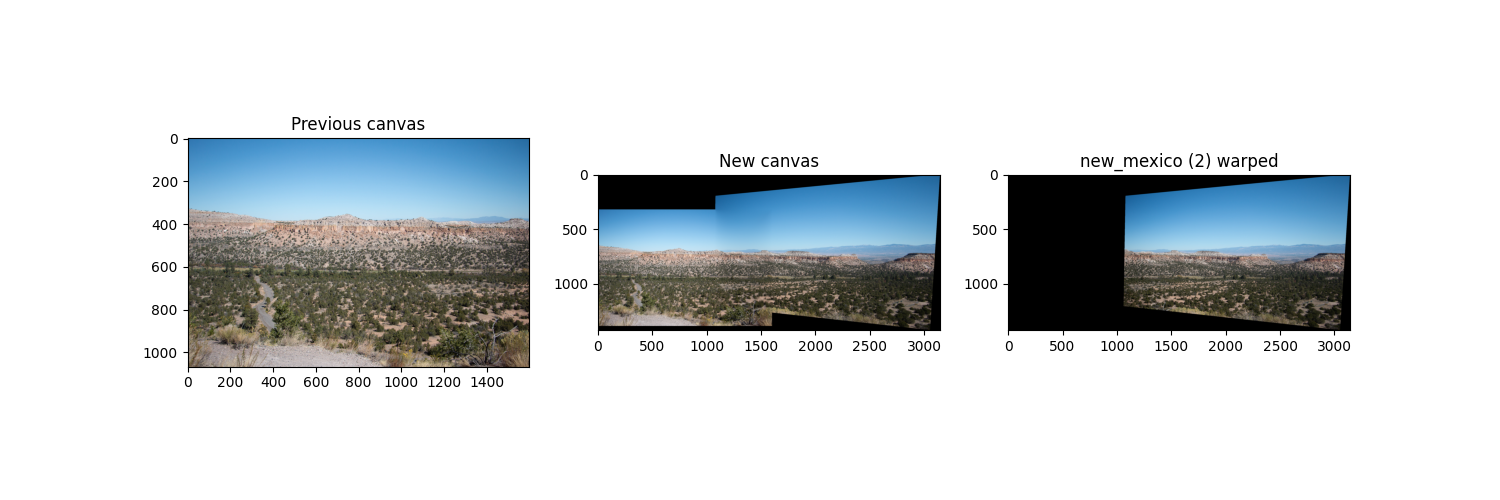

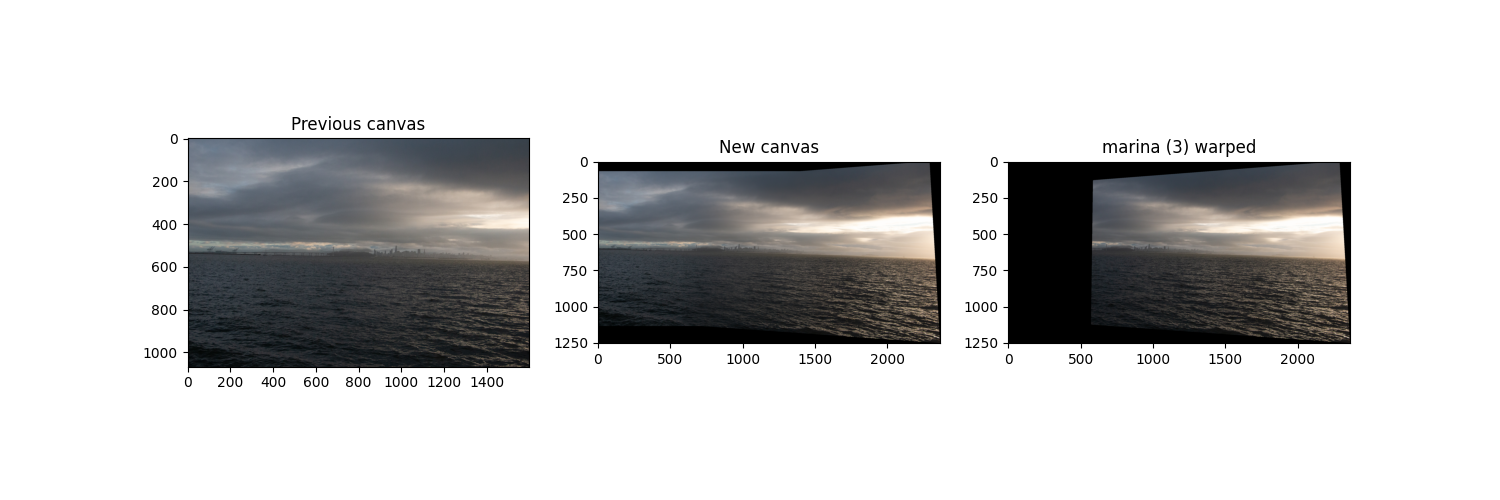

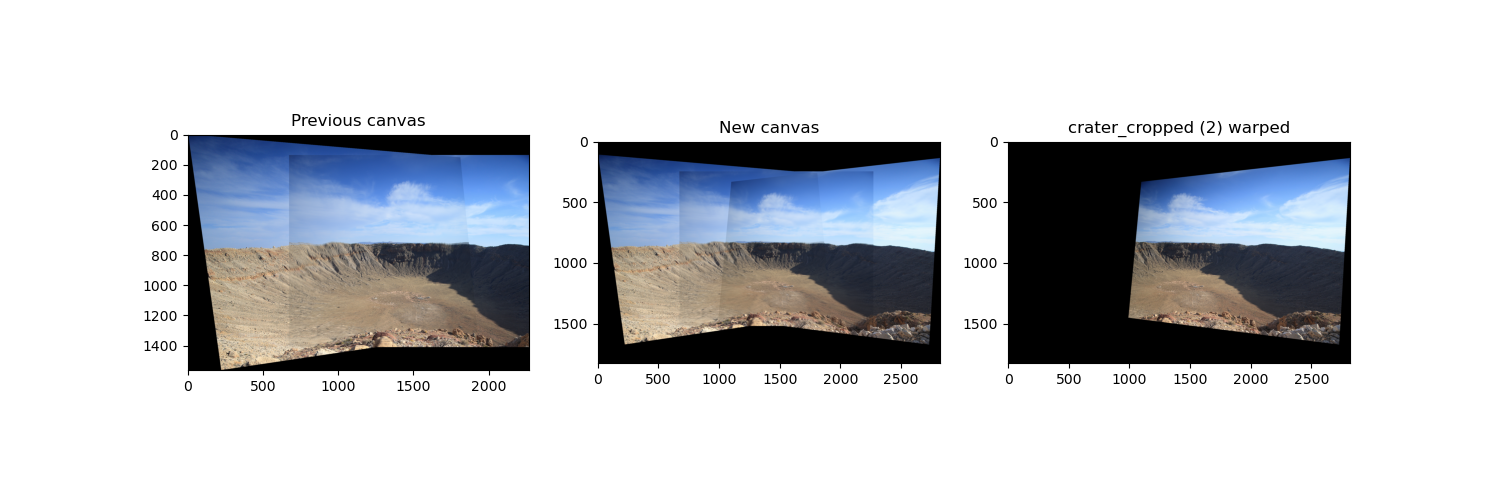

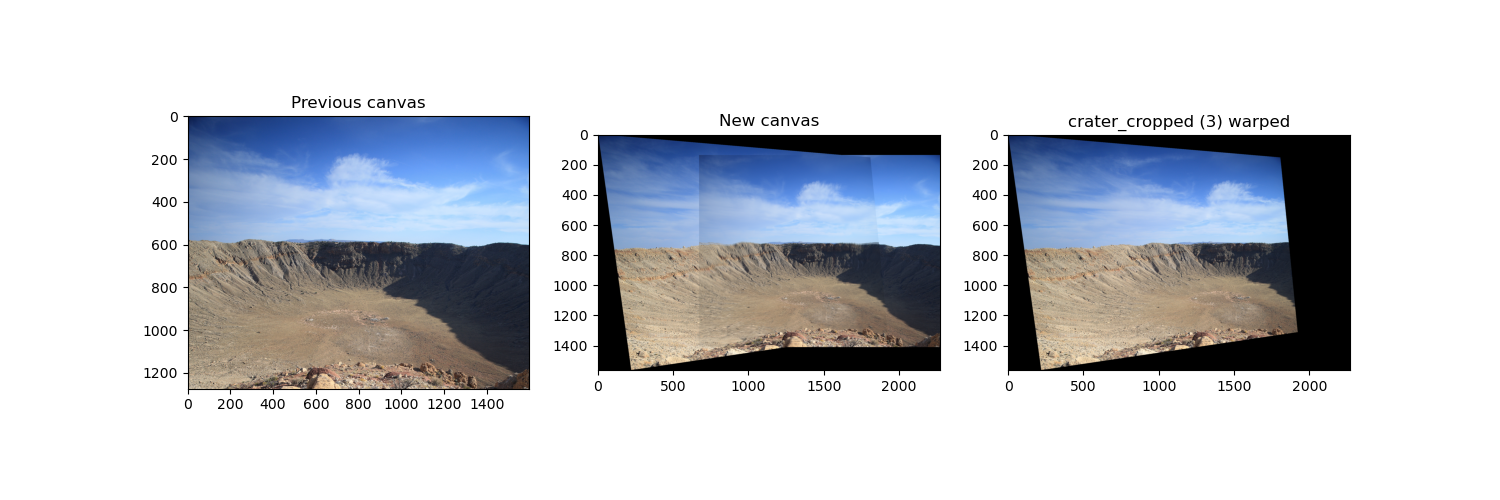

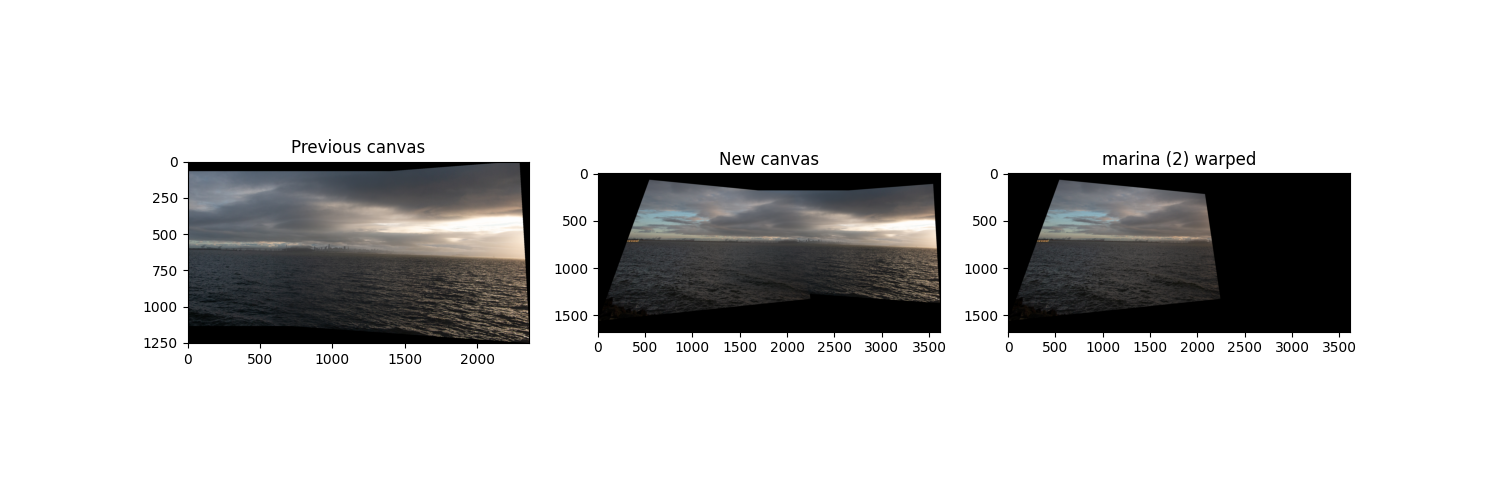

Below are the step-by-step process of warping.
So far, we're just taking the average between the overlapping area, and the boundary of the original images are very clearly visible. To get smoother blending, we adopt Lowe's two-band blending technique, where we create a simple two-level pyramid of the image, and use a smooth alpha channel to blend the low frequency and a binary alpha channel for the high-frequency.
Below is the comparison between the results. With two-band blending, the edges are gone, and the details of the center image are sharper. However, this blending technique still left a faint shadow in the corners, which is discernible if the color is monotonous and the exposure between photos are different.
.jpg)
.jpg)
.jpg)
_annotated.png)
_annotated.png)
Remember that the middle image, marina (2), is the reference and therefore doesn't warp!
Interesting fact: This set of images turned out very hard for the automatic stitching algorithm. One possible reason is that there are very few significant features in the majority of the image. Plus, the water and the sky are not entirely stationary! This only worked by putting most of the feature points on the buildings, which seems insignificant in the sense of corners.
_annotated.png)
Spoiler: Note that there is very little overlap between the two images, so the error in the annotation has a much more significant impact on the result. In the later section, we'll see the automatic stitching does a much more precise job than I did.
Instead of manually labeling the images, we seek ways to automatically find interesting features and find correspondences among them.
The second part of the project is about the algorithm to achieve this.
From the first part of the project, we learn that corners can be used as easily identifiable features. Here, we use the Harris interest point detector to find all the corners of an image.
Below is the Harris corner measure of the checkerboard image.
The result has been filtered to only keep pixels whose corner response is larger than some threshold. However, this is clearly far from enough.
One idea is to keep only the pixels with the largest corner response. However, Brown et al. pointed out that this leads to an imbalance in the spatial distribution of feature points. Instead, we adopt Adaptive Non-Maximal Suppression (ANMS) to select $N$ points that has the largest corner response within the radius of $r$, where $r$ is maximized across the entire image.
Below is the result of applying ANMS on the checker board image with $N = 60$. We can see from this example that the result of ANMS are indeed the vertices of the squares on the board. Also, some of the vertices are not selected because they're would have been too close to their neighbors, which shows that ANMS is effective in ensuring the points are spatially well-separated from each other.
With the Harris corner detector and the ANMS algorithm, we can already automatically extract interesting features from images. The next step is to match between them.
Following Brown's paper, we crop out a 40x40 window around each feature point, and downsample them to 8x8 patches. Below are example of patches that are sampled from the checker board image.
Finally, we will compare the patches from the two images we're trying to stitch together and find matches.
Assume our goal is to find the best match in the target image $B$ for each patch in the source image $A$. We start by finding the top 2 matches for all patches in the source image $A$. Here we apply Lowe's thresholding criteria and compare the ratio between the error of 1-NN/2-NN. For good matches, this ratio should be low. In Brown's paper, the optimal threshold for the squared error between 1-NN/2-NN appears to be 0.1, but with the RANSAC algorithm, it's acceptable to be more lenient with thresholding at this step.
Here is one example with two images taken from Yosemite.
_yosemite%20(2)_Feature_Matching.png)
From the example above, we can see most of the points are indeed valid matches. However, there are still outliers, which is undesirable because least squares optimization is sensitive to outliers.
To find the best homography $H$, we implemented Random Sample Consensus (RANSAC), an outlier detection algorithm. In RANSAC, we iteratively select four random pairs of points and compute the homography $H$. Then, we apply the transformation on all feature points $\mathbf{x}$ in the source image $A$, and count the number of near matches with the points in image $B$. The goal is to find the homography that leads to the most number of near matches. In other words, $$H^{*} = \mathrm{arg} \max_H \vert \{ (\mathbf{x}, \mathbf{x'}) \vert \Vert \mathbf{Hx} - \mathbf{x'} \Vert < \epsilon \}\vert$$
In the example above, after 100000 iterations, the best set of points found by the RANSAC algorithm is as follows.
_yosemite%20(2)_Feature_Matching_with_RANSAC.png)
Now that we have the feature pairs, we can use the same warping procedure to stitch the images together.
_annotated.png)
_new_mexico%20(2)_feature_matching.png)
Look closely in the overlapping area. There is very little misalignment in the automatic stitching result, whereas the overlapping area is a bit blurry in the manual result. This shows that the automatic labeling and feature matching did a very precise job in locating and matching the features.
_crater_cropped%20(2)_feature_matching.png)
_crater_cropped%20(3)_feature_matching.png)
Similar to the example above, manual stitching is less precise than automatic stitching. While both results are quite acceptable, there are less ghosting in the automatically stitched image.
.jpg)
_mpc_lab%20(2)_feature_matching.png)
_mpc_lab%20(3)_feature_matching.png)
_mpc_lab%20(4)_feature_matching.png)
_mpc_lab%20(5)_feature_matching.png)
All images are mostly aligned at first sight, but note how the ghosting effect becomes increasingly significant as more images are stitched together, especially in the middle where there's the most overlapping. Furthermore, we noticed that the center of the image is well-aligned, but the ghosting becomes increasingly prominent near the upper and lower edges.
One suspected reason is the distortion caused by the lenses, which is the most significant near the edges. Another reason is that the images were not taken with an iPhone without a tripod, meaning the center of projection is not exactly the same.
The coolest thing I learned from this project is RANSAC. This is a perfect example of how the collective wisdom can surpass that of an expert. Also, this also gave me new inspirations on how to identify outliers to get better data.
